| Weight | 170 lbs |
|---|---|
| Replaces |
Scag zero-turn engines, Exmark Zero Turn Engines, Replaces Kawasaki FD671D FD750D |
Popular

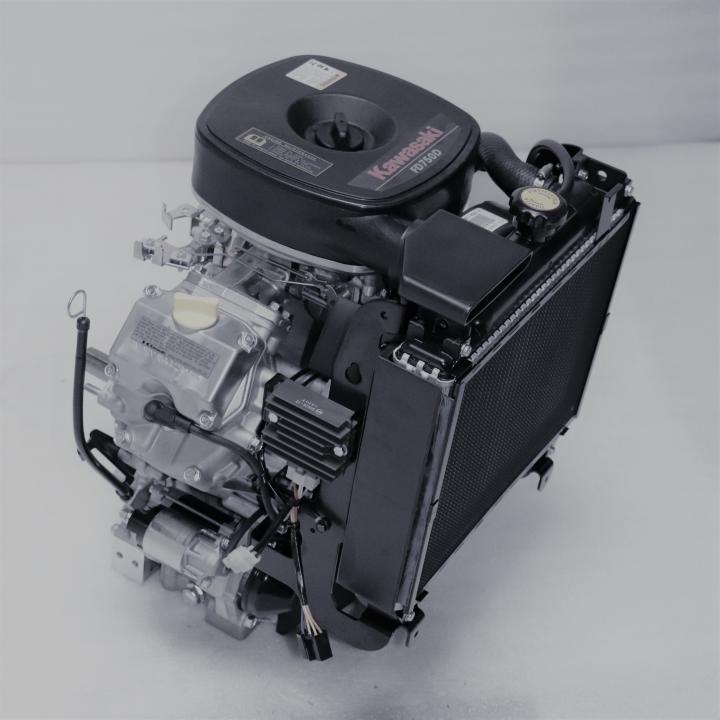

FD750D -RS02-S 25 Hp L/C No Muffler
$2,600.00
The Kawasaki FD750D is a 0.75 l (745 cc, 45.46 cu-in) V-twin 90° liquid-cooled 4-stroke internal combustion small gasoline motor with horizontal shaft, manufactured by Kawasaki Heavy Industries LTd. The FD750D has OHV (overhead valve design); cast iron cylinder liners; float type carburetor with fixed main jet; transistorized fuel pump; flywheel magneto transistor ignition system; mechanical governor and low tone muffler. The Kawasaki FD750D uses full pressure lubrication system with spin-on oil filter and dual element air cleaner. The engine is equipped with solenoid shift type electric starter and 12V-20A or 30A charging coil with regulator. The Kawasaki FD750D produces (20.1 KW; 25.0 HP) at 3,600 rpm of maximum horsepower and 58.3 Nm (5.95 kg·m; 43.03 ft·lb) at 2,400 rpm of torque. Cylinder bore and piston stroke are 78.0 mm (3.07 in) and 78.0 mm (3.07 in), respectively. Compression ratio rating is 8.5:1.0
GENERAL INFORMATION
Model: FD750D
Type: 4-stroke, OHV, V-twin 90°
Crankshaft: 1.125 in.
Displacement: 745 cm 3 (45.46 cu-in)
Max. horsepower: (20.1 KW; 25.0 HP) at 3,600 rpm
Max. torque: (crank PTO) 58.3 Nm (5.95 kg·m; 43.03 ft·lb) at 2,400 rpm
Carburetor: Float type carburetor with fixed main jet
Cooling system: Liquid-cooling
Ignition system: Transistorized ignition
Lubricating system: Pressurized lubrication system
Starting system: Electric starter
Charging system: 12 Volt – 20A or 30A with regulator
Fuel used: Unleaded gasoline (octane number 86 or higher)
Fuel consumption: 230 g/HPh
Cooling system: Pressurized forced circulation type
DIMENSIONS AND WEIGHT
Kawasaki FD750D
Length, mm (in) 520 (20.5)
Width, mm (in) 458 (18.0)
Height, mm (in) 580 (22.8)
Dry weight, kg (lb) 57.0 (125.7)
TIGHTENING TORQUE SPECS
Cylinder head: 27 Nm; 2.7 kg·m; 20 ft·lb
Connecting rod: 21 Nm; 2.1 kg·m; 15.5 ft·lb
Flywheel: 56 Nm; 5.5 kg·m; 41 ft·lb
Crankcase cover: 22 Nm; 2.2 kg·m; 16.2 ft·lb
Intake manifold: 12 Nm; 1.2 kg·m; 9 ft·lb
Oil drain plug: 25 Nm; 2.5 kg·m; 18.5 ft·lb
Valve clearance lock nut: 11 Nm; 1.1 kg·m; 8 ft·lb
MAINTENANCE DATA
Maximum speed: 3500 ± 100 rpm
Idle speed: 1500 ± 100 rpm
Cylinder compression: 7.5 kg/cm2 (107 psi) at 500 rpm
Valve clearance: Intake valve: 0.15 mm (0.006 in)
Exhaust valve: 0.15 mm (0.006 in)
Oil type: 4-stroke or an equivalent (SC, SD, SE, SF, SG, or SH)
Recommended oil: SAE 10W-40, 10W-30, 5W-20
Oil capacity: (with filter changed) 1.8-2.0 L (1.9-2.1 US qt)
Spark plug: NGK: BPR2ES
Spark plug gap: 0.75 mm (0.03 in)
Spark plug tightening torque: 25 Nm; 2.5 kg·m; 18.5 ft·lb
Ignition coil air gap: 0.25-0.40 mm (0.009-0.015)
